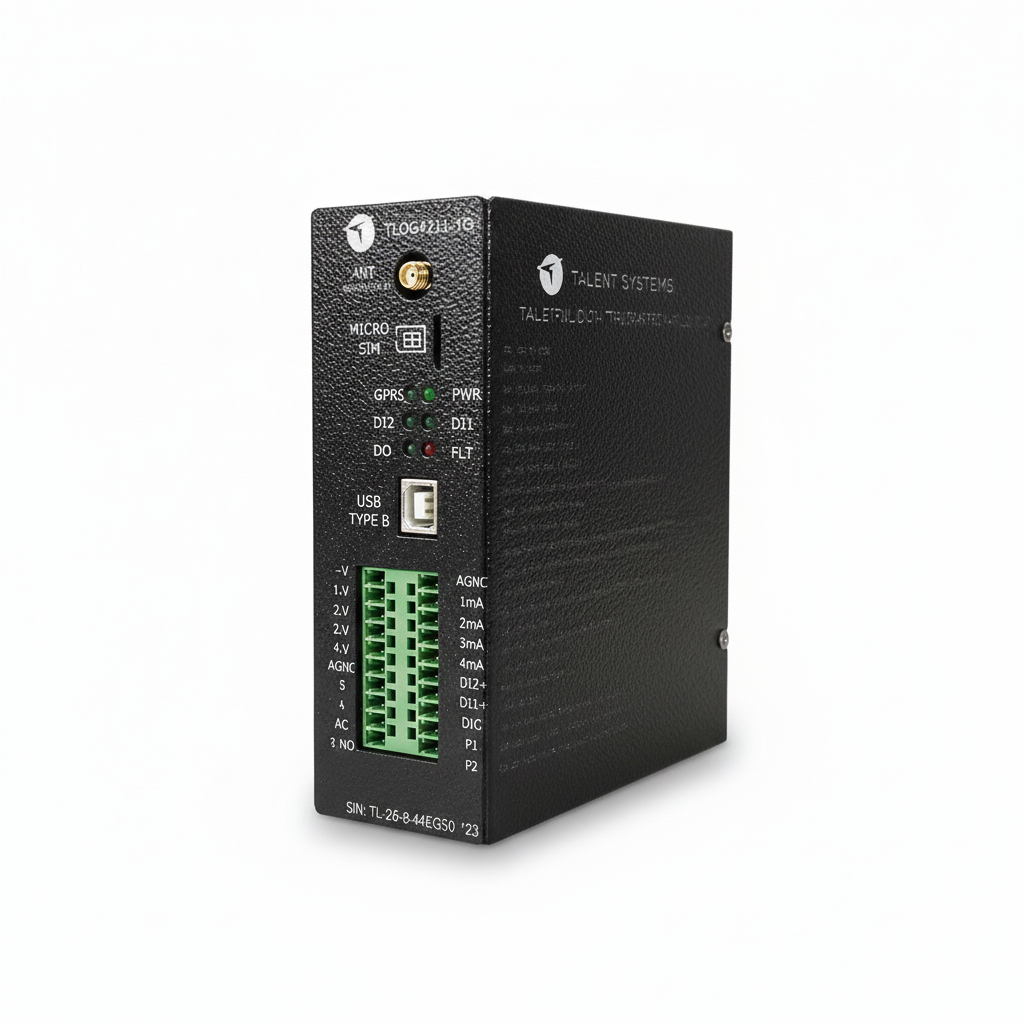

TalentLog is a mission-critical LTE data logger & gateway, equipped with USB, RS485 & BT interface.

Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface.

TalentLog is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as TalentView SCADA System or any 3rd Part SCADA software.

A new option of SDI-12 (Serial Digital Interface at 1200 baud) protocol for intelligent sensors that monitor environment data with 12 volts output to enable the TalentLog to communicate with other data acquisition device. The protocol follows a client-server configuration whereby a TalentLog 42xx / 68xx SDI-12 recorder requests data from the intelligent sensors (SDI-12 sensors), each identified with a unique address.

KEY FEATURES:

Mobile: 4G/LTE (Cat4), 3G, 2G

Network protocols: Modbus TCP server/ client, MQTT, MQTTS, HTTP, HTTPS, FTP, FTPS, SMS

Log Memory: 1/2/4 GB

Power: 2 pin power socket, 5-32VDC or 110 – 220 VAC 50/60HZ

SIM:1x Internal SIM holder

Antenna: 1x SMA

Time Sync: Network Identity and Time Zone (NITZ) synchronization

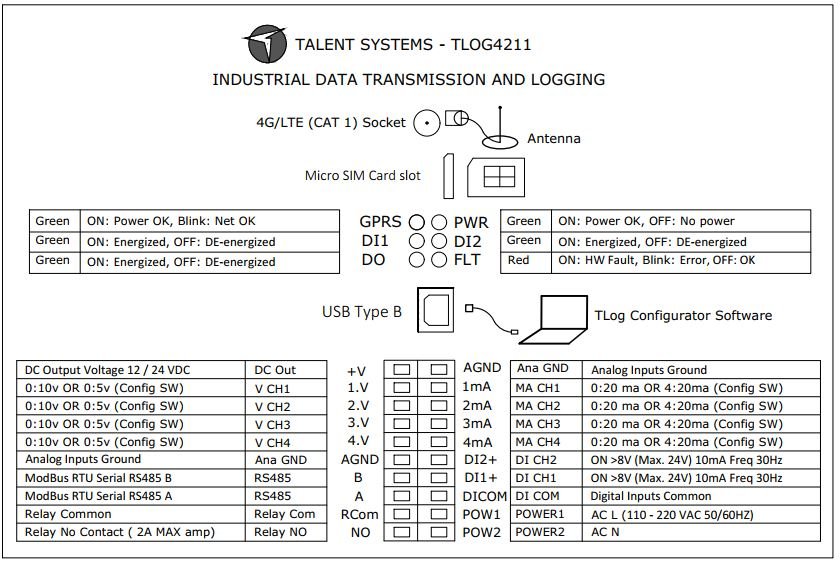

Inputs/Outputs: 2xDigital Pulse input, 1x output Relay, 4x Isolated Analog Input (0:20MA – 0:10V)

USB:1x Micro USB slave for configuration / System Updates

Serial: 1x Modbus RS485 / SDI-12 (part number selection)

Status LEDs: GPRS, Power, Digital Inputs / Output / Fault

Temperature: 0 °C to 65 °C

Humidity: 0 to 90% without condensation

Housing: Electrostatic coated aluminum

Dimensions: 45 x 130 x 120 mm

Weight: 230g

Configuration: TalentLogix Configurator
